Authentication Flow

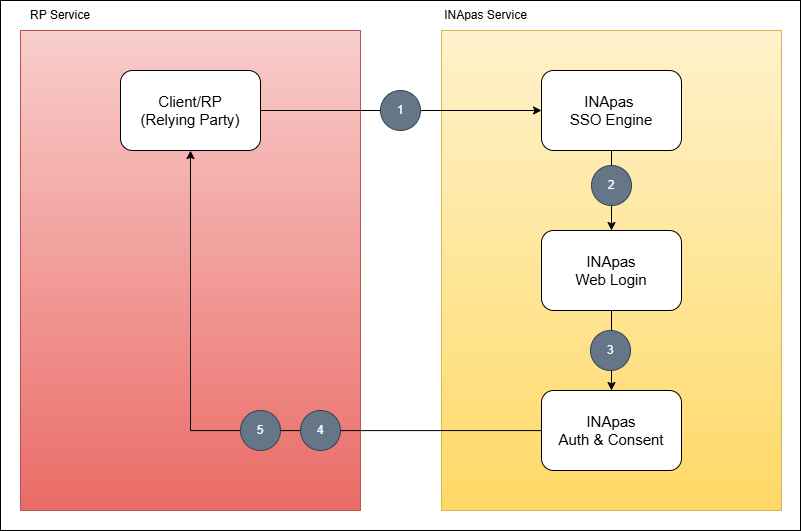

INApas Flow

1. RP/Client Request Authentication (Click Login with INApas)​

Process:​

The Relying Party (RP) or Client sends an authentication request to the INApas SSO endpoint /sso/oauth2/auth.

Technical Details:​

The request is sent via HTTPS protocol with GET or POST method.

Important parameters sent include:

  • client_id: The unique ID of the client application registered with INApas.
  • redirect_uri: The URL to which the user is returned after authentication to receive a token or authorization code.
  • response_type: Set to code for authorization code flow.
  • scope: Specifies the scope of the data to be accessed (e.g., user profile).
  • state: A unique token to prevent CSRF (Cross-Site Request Forgery) attacks.

2. INApas Redirects to Web Login Page​

Process:​

Users are redirected to the INApas web login page to enter their credentials.

Technical Details:​

  • INApas SSO engine endpoint redirected to INApas web login page (QR Code)

  • This endpoint also includes an additional authentication mechanism (LDA) to enhance security.

  • The backend system validates user credentials against an integrated database or Identity Provider (OP).

3. Authentication & Consent Approval​

Process:​

Upon successful login, users are directed to a consent page to authorize access to their data according to the requested scope.

Technical Details:​

  • The user can view the list of permissions requested by the application.

  • If the user grants consent, the server will generate an authorization code.

  • If the user declines, the process will be terminated and an error will be returned to the RP.

4. Redirect to RP Callback URL​

Process:​

Once approval is granted, the user is redirected to the callback URL specified by the RP with the authorization code included.

Technical Details:​

The callback URL will accept parameters such as:

  • code: A temporary authorization code used to obtain the access token.

  • state: A unique parameter used for security validation.

The RP must validate the state parameter to ensure the integrity of the request.

5. Token Exchange​

Process:​

The RP uses the authorization code to request an access token from INApas via the /sso/oauth2/token endpoint.

Technical Details:​

This request uses the POST method with parameters such as:

  • client_id and client_secret: Used for application authentication.

  • Code: Authorization code received in the previous step.

  • redirect_uri: Must match the previously registered URL.

  • grant_type: Set to authorization_code.

Response:​

  • If valid, the server will return the access token, refresh token (optional), and additional information such as token duration.
